Crown 2-7/8" - 7
Crown 2-7/8" - 7

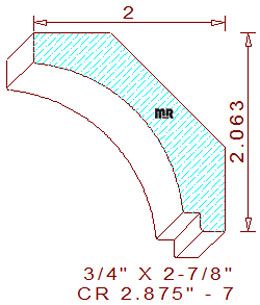

This concave 2-7/8" - 7 crown mould measures 2.875" wide by .750" thickness. The profile is comprised of a 1-23/32" radius cavetto flanked by a 5/16" tall vertical fillet on top with a 3/16" by 3/16" notched rabbet connected to a 1/4" wide horizontal fillet positioned at the bottom of the pattern. With the spring angles fixed at forty-five degrees, the installed height becomes 2-1/16" tall with a projection of 2" wide. Three points in the design are positioned on the same level plane, creating superior hold-down conditions while milling this pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.540
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.590
Top Cutter Head
Width: 2.875
Depth of Cut: 0.390
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
