Crown 3" - 29
Crown 3" - 29

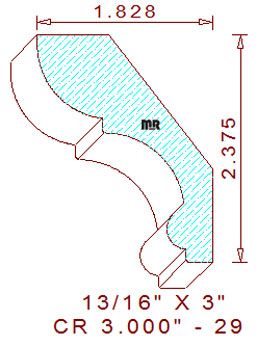

This engaging 3" - 29 crown mould measures 3.000" wide by .812" thickness. The profile comprises a quarter-round bead with an attached vertical fillet at the top. This portion is connected to a cavetto or cove in the center with a half-round bead and squared fillet at the bottom. When installed, the height becomes 2-3/8" tall with a projection of 1-53/64" wide with the spring angles fixed at thirty-eight and fifty-two degrees. Three high points in the design are positioned on the same level plane, holding down this pattern while milling a cinch; perhaps a felt-lined pressure shoe will eliminate any shine marks on the beads from the machine's pressure element.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.586
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.604
Top Cutter Head
Width: 3.000
Depth of Cut: 0.471
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$238.00
Not Needed
Total:
$571.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$253.00
Not Needed
Total:
$605.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$275.50
Not Needed
Total:
$656.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
