Crown 3" - 3
Crown 3" - 3

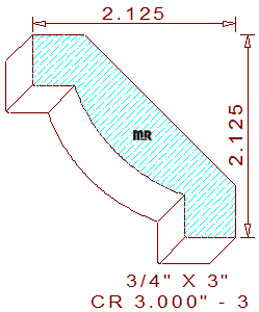

This 3" - 3 ovolo crown mould measures 3.000" wide by .750" thickness. The symmetrical profile is comprised of a 1-55/64" radius arc in the center, flanked by 7/16" by 17/32" squared fillets positioned at the top and bottom of the pattern. The spring angles are fixed at forty-five degrees; search our bevels category by the degree to find a set of back bevel cutters appropriate for this ovolo crown moulding. These specific bevels set the installed height and projection at an identical dimension of 2-1/8" tall and wide.
Need this profile template and a set of custom moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high-speed steels or carbide and shipped within twenty-four hours.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.385
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.385
Top Cutter Head
Width: 3.000
Depth of Cut: 0.455
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$238.00
Not Needed
Total:
$528.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$253.00
Not Needed
Total:
$562.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$275.50
Not Needed
Total:
$613.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
