Crown 3-1/16" - 4

Crown 3-1/16" - 4

Crown 3-1/16" - 4

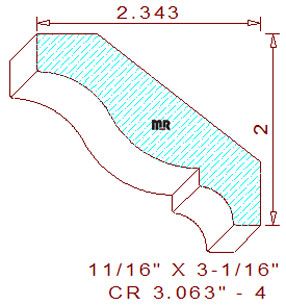

This classic 3-1/16" - 4 crown mould measures 3.077" wide by .687" thickness. The traditional profile comprises a cyma recta flanked by vertical fillets in the upper portion with a cove and horizontal fillet positioned at the bottom of the detail. Unlike the vast majority of crown moulds where the height is larger or equal to the projection, this fine detail is just the opposite, with a height of 2" tall and a projection of 2-11/32" wide. The spring angles are the common thirty-eight and fifty-two degrees with two design points purposely positioned on the same level plane, creating superior hold down while milling the pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.525
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.391
Top Cutter Head
Width: 3.063
Depth of Cut: 0.389
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$233.65
Not Needed
Total:
$514.15
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$248.90
Not Needed
Total:
$548.40
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$264.15
Not Needed
Total:
$582.65
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
