Crown 3-3/32" - 1

Crown 3-3/32" - 1

Crown 3-3/32" - 1

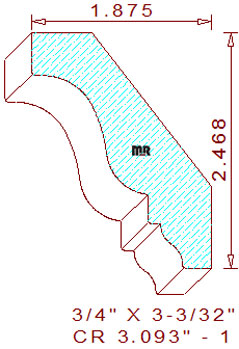

This custom 3-3/32" - 1 crown mould measures 3.093" wide by .750" thick. Please look in our bevels category (search by degree) for a set of beveled moulding cutters appropriate for this profile design. We have intentionally designed all our crown and coves with back bevels of forty-five degrees and under to be milled on the right vertical cutter head, all forty-five degree back bevels and higher will be milled on the left vertical cutter head. The decorative profile is comprised of a 7/16" tall vertical fillet at the top, connected to a cyma recta in the center, with a stepped fillet attached to an ogee/cyma reversa, and a 5/16" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees; these bevels set the installed height at 2-15/32" tall, with a projection of 1-7/8" wide.

Whether you own a Weinig, Leadermac, SCM, or Homag moulder, our custom moulding knife designs will mill flawlessly on them all.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.491
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.529
Top Cutter Head
Width: 3.093
Depth of Cut: 0.333
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$235.15
Not Needed
Total:
$558.65
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$250.52
Not Needed
Total:
$593.02
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$265.89
Not Needed
Total:
$627.39
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
