Crown 3-3/32" - 2

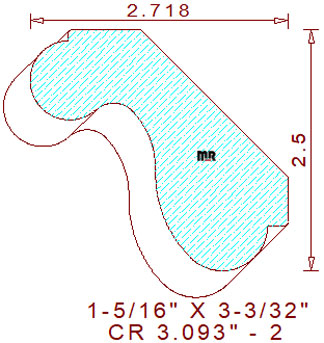

This elaborate 3-3/32" - 2 crown mould measures 3.093" width by 1.312" thickness, requiring a 3-3/8" wide blank of six-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The beautiful terminating profile comprises a 7/74" tall recessed line connected to a 13/32" radius pencil bead on the top left. The lower portion of the semicircle connects to a three-tangent radius s-shaped curvature with a 7/32" recessed line on the right side of the design. The spring angles are at forty-five degrees; the dedicated back bevels keep the face sides of the pattern parallel to the wall and ceiling. These specific angle positions lock in the installed height at 2-1/2" tall with a 2-23/32" projection across the top. This template ready cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing profile cutters for this creative pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, making your job much easier in production.

Our precise cad drawings contain plenty of important information that will assist you during setup and milling of this detail. Our acrylic templates provide enough blend areas on the knives, so you will never realize where one cutter begins or ends; these specific design features will substantially increase yield during milling.
