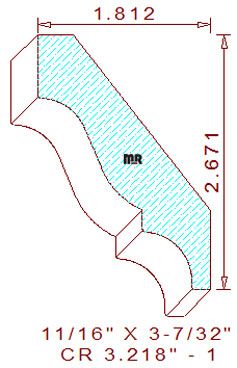

This Classic Crown Moulding 3-7/32" - 1 measures 3-7/32" wide by 11/16" thickness, the profile is composed of two vertical fillets separated by a cyma recta in the middle and a cavetto with an attached horizontal fillet is positioned on the bottom. When installed the height becomes 2-43/64" tall with a projection of 1-13/16" wide, the spring angles are fixed at thirty-eight and fifty-two degree with two of the three points of the design positioned on the same level plane, this will create superior hold down capabilities during the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
