Crown 3-1/4" - 16
Crown 3-1/4" - 16

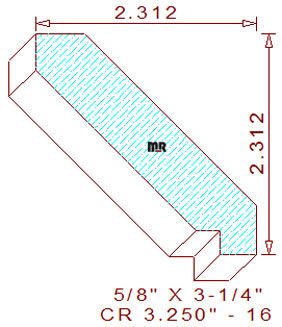

This 3-1/4" - 16 mission-style crown mould measures 3.250" wide by .625" thickness. The profile is comprised of a 2-3/8" wide splay face angle in the center with an attached 3/8" tall vertical fillet on top and a 1/4" notched fillet connected to a 3/8" wide horizontal fillet on the bottom of the pattern. The spring angles are fixed at forty-five degree which sets the installed height at 3-5/16" tall with a projection of 2-5/16" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.360
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.360
Top Cutter Head
Width: 3.250
Depth of Cut: 0.335
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$251.00
Not Needed
Total:
$541.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$267.00
Not Needed
Total:
$576.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$291.00
Not Needed
Total:
$628.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
