Crown 3-1/4" - 19
Crown 3-1/4" - 19

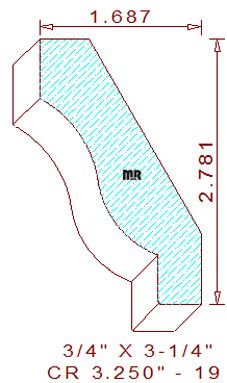

This 3-1/4" - 19 cyma recta crown mould measures 3.250" wide by .750" thickness. The profile is composed of a 5/8" tall fillet on top, a French curve or cyma recta in the middle, and approximately 29/64" wide, by 1/2" tall, squared fillet on the bottom, when installed the height becomes 2-25/32" tall with a projection of 1-11/16" wide, the spring angles are set at thirty and sixty degrees with even points for superior hold down capabilities while milling the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.443
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.372
Top Cutter Head
Width: 3.250
Depth of Cut: 0.500
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
