Crown 3-1/4" - 20
Crown 3-1/4" - 20

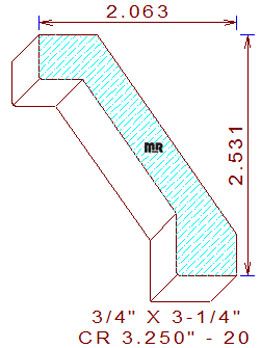

This shaker- style 3-1/4" - 20 crown mould measures 3.250" wide by .750" thickness. The terminating profile consists of a roughly 1/2" X 1/2" squared fillet on top and a 5/8" X 5/8" squared fillet on the bottom that is both connected by a straight line when installed; the height becomes 2-17/32" tall with a projection of 2-1/16" wide, the spring angles are set at thirty-five and fifty-five degrees.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.498
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.251
Top Cutter Head
Width: 3.250
Depth of Cut: 0.593
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$251.00
Not Needed
Total:
$584.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$267.00
Not Needed
Total:
$619.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$291.00
Not Needed
Total:
$671.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
