Crown Moulding 3.250" - 7

Crown Moulding 3.250" - 7

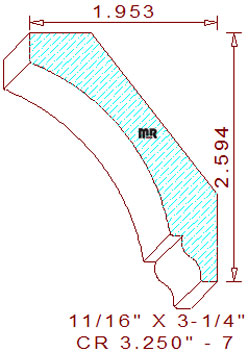

This Crown/Cove Moulding 3.250" - 7 measures 3.250" wide by .687" thickness with a .396" depth of cut on the right vertical cutters, .720" depth of cut on the left vertical blades, and a .318" depth of cut on the top horizontal set of moulding knives.

The lovely profile is comprised of a 2-3/8" radius cove in the center, attached to a 5/16" tall vertical fillet on top, the lower section of the design consists of two tangent radiuses creating a small ogee/cyma reversa, flanked by a 1/8" wide and a 3/16" wide horizontal fillet on the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, search our bevels category by these degrees to find two back bevel cutters appropriate for this beautiful crown moulding design, these specific back bevels set the installed height at 2-19/32" tall with a projection of 1-61/64" wide. Two high points in the detail were intentionally positioned on the same level plane, this specialized design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is properly set parallel to the moulder bed plates.

Would you like to reduce the amount of time it takes to set up the moulder for a milling production run? Perhaps calibrating the moulder spindles axially and radially will substantially decrease setup time while simultaneously increasing production.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
