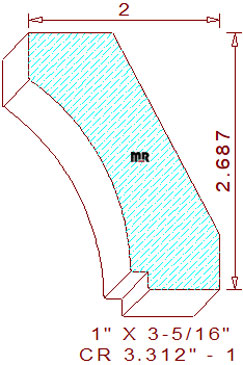

This Crown/Cove Moulding 3-5/16" - 1 measures 3.312" wide by 1.000" thickness, the profile has a simple design that consist of an elongated shallow cove in the center with a 1/2" tall vertical fillet on top and a 3/16" notched rabbet attached to a 3/4" wide horizontal fillet at the bottom. With the spring angles set at twenty-eight and sixty-two degree the installed height becomes 2-11/16" tall with a projection of 2" wide, two of the points are purposely positioned on the same level plane for superior hold down capabilities while milling the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
