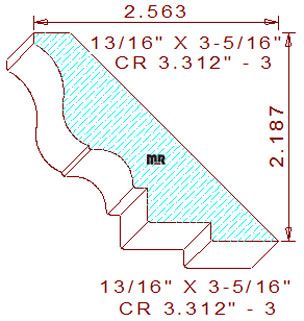

This Unique Crown Moulding 3-5/16" - 3 measures 3.312" wide by .812" thickness, the profile design is a combination of a cyma recta cove and two wide stepped fillets positioned on the bottom. The installed height becomes 2-3/16" tall with a projection of 2-9/16" wide with spring angles fixed at forty-five degree. The moulding knives for this pattern will come within .020" of the bed plates, we also recommend a custom pressure shoe be used to assist in holding down the pattern while milling.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
