Crown 3-3/8" - 1

Crown 3-3/8" - 1

Crown 3-3/8" - 1

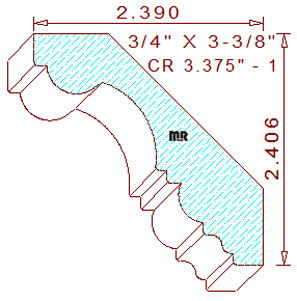

This ornate 3-3/8" - 1 crown mould measures 3.375" wide by .750" thickness. The intricate profile comprises many classic geometrical shapes including a half-round circle, notched, vertical, horizontal, and stepped fillets, and even a small cyma recta in the lower portion of the design. The spring angles are fixed at forty-five degrees; search our bevels category by this degree to find back bevel cutters appropriate for this creative crown moulding design, these specific back bevels set the installed height at 2-13/32" tall with a projection of 2-25/64" wide. Three high points in the detail are purposely positioned on the same level plane; this specialized design feature will assure excellent hold-down conditions while milling the detail on industrial machinery, providing the pressure shoe is set parallel to the moulder bed plates.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.542
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.555
Top Cutter Head
Width: 3.375
Depth of Cut: 0.454
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$249.25
Not Needed
Total:
$529.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$265.75
Not Needed
Total:
$565.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$282.25
Not Needed
Total:
$600.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
