Crown 3-3/8" - 12
Crown 3-3/8" - 12

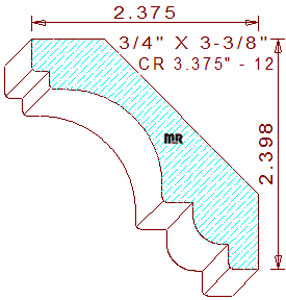

This fancy 3-3/8" - 12 crown mould measures 3.375" wide by .750" thickness. The classy profile is comprised of a 1" radius cavetto in the center, attached to a 3/16" tall by 3/16" wide notched fillet and an 11/32" tall vertical fillet on top, the lower portion consists of an ovolo connected to a 5/16" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at forty-five degrees; search our bevels category by this degree to find back bevel cutters appropriate for this good-looking crown moulding, these specific back bevels set the installed height at 2-25/64" tall with a projection of 2-3/8" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.537
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.554
Top Cutter Head
Width: 3.375
Depth of Cut: 0.394
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$172.25
$128.25
(Template not needed)
$266.75
Not Needed
Total:
$567.25
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$181.75
$137.75
(Template not needed)
$283.25
Not Needed
Total:
$602.75
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$196.00
$152.00
(Template not needed)
$308.00
Not Needed
Total:
$656.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
