Crown 3-3/8" - 14
Crown 3-3/8" - 14

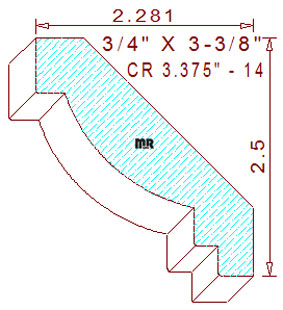

This 3-3/8" - 14 ovolo crown mould measures 3.375" wide by .750" thickness. The stepped ovolo profile is comprised of a 1-13/16" radius arc in the center, connected to a 5/16" wide by 37/64" tall squared fillet on top, the lower portion of the design consists of a 25/64" tall vertical fillet attached to a 1/4" wide by 5/16" tall, notched fillet with a 3/8" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at forty-five degrees; search our
bevels category by this degree to find back bevel cutters appropriate for this ovolo-shaped crown design these specific back bevels set the installed height at 2-1/2" tall with a projection of 2-9/32" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.355
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.504
Top Cutter Head
Width: 3.375
Depth of Cut: 0.457
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
