Crown 3-3/8" - 17

Crown 3-3/8" - 17

Crown 3-3/8" - 17

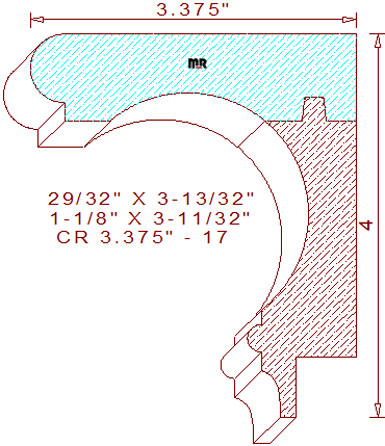

This Victorian 3-3/8" - 17 crown mould is milled in two separate production runs. The upper portion measures 3-13/16" wide by 29/32" thickness, enabling that section to be machined out of five quarter lumber. The lower piece measures 3-11/16" wide by 1-1/8" thickness requiring the use of five or six quarter lumber. The elaborate profile is composed of a 23/32" tall bullnose with a 3/16" vertical fillet on the top left, attached to a 31/64" wide horizontal line that merges with a 1-17/64" radius concave semicircular arc in the center, connected to a decorative 9/32" wide half round bead flanked by small vertical line segments and an elliptically shaped cove at the bottom right side of the pattern. The rabbet dimension for the embellishing crown backer measures 5/8" wide by 5/8" tall; you may want to review some of our baseboard patterns to fit into this section of the profile to create a one of a kind design.

Lower Profile Width = 3.344" / Depth of Cut = .625" (top knives).

Thickness = 1.125" / Depth of Cut = .248" (right blades) & .625" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.906
Depth of Cut: 0.513
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.375
Depth of Cut: 0.289
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
Not Needed
$249.25
Not Needed
Total:
$379.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
Not Needed
$265.75
Not Needed
Total:
$403.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
Not Needed
$282.25
Not Needed
Total:
$426.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
