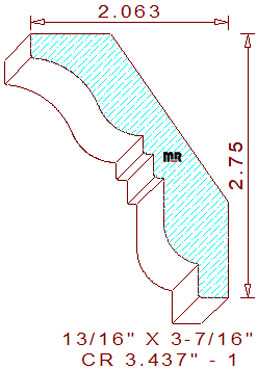

This elegantly sophisticated 3-7/16" - 1crown mould measures 3.437" wide by .812" thickness, enabling the detail to be milled sprung out of four-quarter lumber. The custom profile is composed of a 1/4" tall vertical line joined to a 13/16" concave semicircle that's tangent off of a 1/2" radius arc creating the cyma recta in the upper portion, attached to three-sixteenths and one-quarter inch tall stepped lines that transitions into a 29/32" high line segment with a 7/16" rounded edge, connected to an 11/32" tall by 5/16" wide squared lines at the bottom of the pattern. The spring angles are fixed at thirty-five and fifty-five degrees. These specific back bevels set the installed height at 2-3/4" with a projection of 2-1/16" wide.
This cad generated dxf file contains three skillfully drafted template designs for creating knives for this lovely crown pattern. All our innovative profiles have a proven unbroken CNC (computer numerical control) tool path expediting the production process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.685
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.571
Top Cutter Head
Width: 3.438
Depth of Cut: 0.478
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$260.78
Not Needed
Total:
$603.28
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$277.53
Not Needed
Total:
$639.03
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$302.66
Not Needed
Total:
$692.66
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
