Crown 3-7/16" - 2

Crown 3-7/16" - 2

Crown 3-7/16" - 2

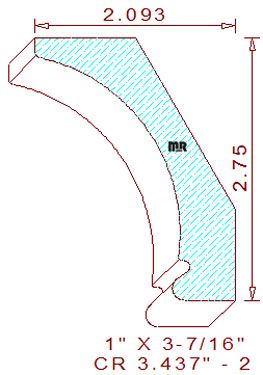

This concave 3-7/16" - 2 crown mould measures 3.428" wide by 1.000" thickness. The profile comprises a large cavetto in the center connected to a vertical fillet on top and a small scotia and half-round bead at the bottom of the detail. The spring angles are fixed at thirty and sixty degrees, setting the installed height at 2-3/4" tall with a projection of 2-3/32" wide. The two high points in the design are intentionally positioned on the same level plane for superior hold-down conditions while milling the pattern on an industrial moulder.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.916
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.478
Top Cutter Head
Width: 3.438
Depth of Cut: 0.625
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$130.50
$252.40
Not Needed
Total:
$520.40
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$137.50
$269.15
Not Needed
Total:
$551.15
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$144.50
$285.90
Not Needed
Total:
$581.90
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
