Crown 3-7/16" - 5
Crown 3-7/16" - 5

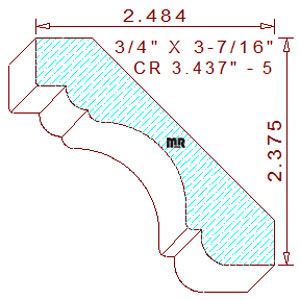

This stylish 3-7/16" - 5 crown mould measures 3.437" wide by .750" thickness. The creative design is comprised of a 1/2" tall vertical fillet on top, connected to a 1/4" tall quarter circle, joined to a 1-1/8" tall cove flanked by a vertical and horizontal fillet, with a 49/64" wide horizontal fillet attached to a 19/64" radius at the bottom of the pattern. Two high points in the detail are intentionally positioned on the same level plane.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.413
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.335
Top Cutter Head
Width: 3.438
Depth of Cut: 0.508
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$260.78
Not Needed
Total:
$550.78
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$277.53
Not Needed
Total:
$586.53
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$302.66
Not Needed
Total:
$640.16
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
