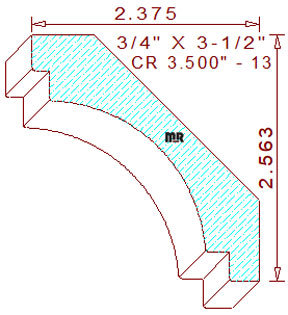

The asymmetrical profile is comprised of a 1-45/64" radius cavetto in the center, attached to a 5/16" tall by 3/16" wide notched fillet, connected to a 3/8" tall vertical line at the top. The lower portion of the design consists of a 5/16" tall vertical line attached to a 5/16" horizontal line at the bottom of the detail. The spring angles are fixed at forty-five degrees, browse our bevels category by this degree to find a back-bevel cutter appropriate for this elegant crown/cove moulding, these specific back bevels set the installed height at 2-9/16" tall with a projection of 2-3/8" wide.
Two high points in the detail are intentionally positioned on the same level plane, this helpful design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the pressure shoe is set parallel to the bed plates. We provide the cut steel size on all our moulding knife designs, this handy feature allows you to be able to purchase the correct width size of knife steel before you start knife grinding procedures for moulding production.
