Crown Moulding 3-1/2" - 16

Crown Moulding 3-1/2" - 16

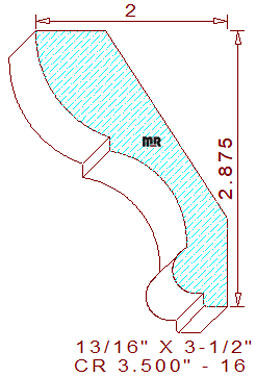

This Innovative Crown Moulding 3-1/2" - 16 measures 3.500" wide by .813" thickness, with a .475" depth of cut on the right vertical cutters, .904" depth of cut on the left set of blades, and a .478" depth of cut on the top horizontal moulding knives.

The charming profile is comprised of a 1-5/32" radius convex arc at the top, connected to a 9/64" tall straight line in the center, attached to a 61/64" radius concave cove, with a 1/4" radius half round circle and a 9/64" tall by 3/16" wide squared fillet at the bottom of the pattern. The spring angles are fixed at thirty-three and fifty-seven degrees, browse our bevels category by these degree to find two sets of back-bevel cutters appropriate for this attractive crown moulding, these specific back bevels set the installed height at 2-7/8" tall with a projection of 2" wide. Two high points in the detail were intentionally positioned on the same level plane, this design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the pressure shoe is parallel to the bed plates.

We invite you to search for other moulding design ideas for your client's elegant home, we have over 15,000 alternative profile options for you to choose from, simply alter the search parameters to view. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom moulding designs.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
