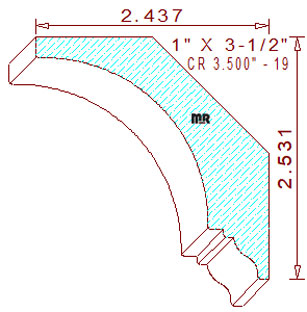

The concave profile is comprised of a 1-23/32" radius cove flanked by a 13/64" tall vertical fillet at the top, and a 11/64" horizontal line below, connected to a small stepped fillet that is joined to a tiny ogee and a 1/8" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 2-17/32" tall with a projection of 2-7/16" wide. Three high points in the detail were intentionally positioned on the same level plane, our specialized design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the pressure shoe is set parallel to the bed plates.
Do you want to know who produces some of the finest quality custom moulding knives, excellent customer service, all with affordable pricing? Offer us an opportunity to demonstrate our abilities, you will be pleasantly surprised with our services.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
