Crown 3-1/2" - 21
Crown 3-1/2" - 21

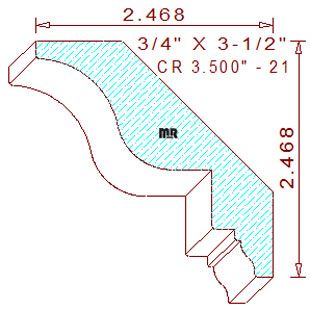

This interesting 3-1/2" - 21 crown mould measures 3.500" wide by .750" thickness. The profile consists of a cyma recta in the upper portion connected to a 1/2" wide by 5/8" notch for inlaying a piece of dentil or rope mould. The bottom of the pattern is comprised of a stepped fillet with an attached cyma reversa (ogee). When installed, the height and projection have identical dimensions at 2-15/32" tall and wide. The spring angles are fixed at forty-five degrees with two points of the design purposely placed on the same level plane for optimal hold-down conditions during the milling process
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.629
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.629
Top Cutter Head
Width: 3.500
Depth of Cut: 0.463
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$264.00
Not Needed
Total:
$573.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$281.00
Not Needed
Total:
$609.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$306.50
Not Needed
Total:
$663.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
