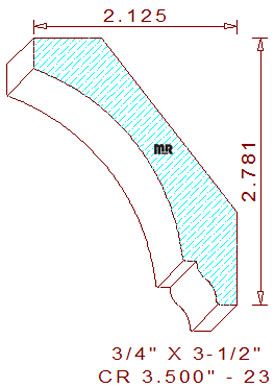

This Crown Moulding 3-1/2" - 23 measures 3.500" wide by .750" thickness, the profile is composed of a combination of these geometrical shapes, three fillets, one vertical and two horizontal, a 2-3/8" radius cavetto in the center, and an ogee on the bottom. When installed the profile height is 2-25/32" tall, with a projection of 2-1/8" wide, the spring angles are set a thirty-eight and fifty-two degrees and the three points of the design are located on the same plane for superior hold down while milling this pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
