Crown 3-1/2" - 5
Crown 3-1/2" - 5

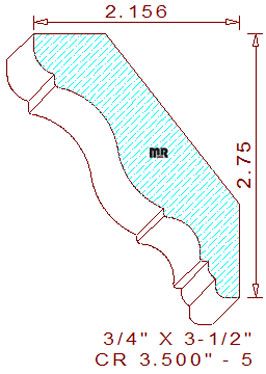

This creative 3-1/2" - 5 crown mould measures 3.500" wide by .750" thickness. The supporting profile is composed of a cyma recta in the upper center portion flanked by two vertical fillets with a quarter-round bead attached at the top of the design a cove with two cascading beads positioned on the bottom of the pattern. When installed the height becomes 2-3/4" tall with a projection of 2-5/32" wide. The spring angles are fixed at thirty-eight and fifty-two degrees, with the high points of the design positioned on the same level plane for superior hold-down conditions during the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.595
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.600
Top Cutter Head
Width: 3.500
Depth of Cut: 0.216
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$264.00
Not Needed
Total:
$597.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$281.00
Not Needed
Total:
$633.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$306.50
Not Needed
Total:
$687.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
