Crown 3-1/2" - 7

Crown 3-1/2" - 7

Crown 3-1/2" - 7

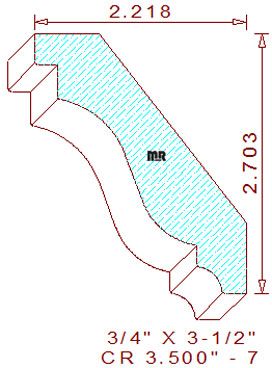

This lovely 3-1/2" - 7 crown mould measures 3.500" wide by .750" thickness. The profile comprises a notched fillet on top attached to a cyma recta in the middle, with a cavetto flanked by small fillets at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, setting the installed height at 2-45/64" tall with a projection of 1-7/32" wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.534
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.453
Top Cutter Head
Width: 3.500
Depth of Cut: 0.390
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$255.50
Not Needed
Total:
$579.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$272.50
Not Needed
Total:
$615.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$289.50
Not Needed
Total:
$651.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
