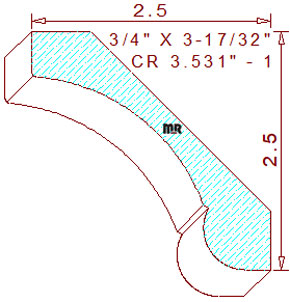

This crown/cove moulding 3-17/32" - 1 measures 3.531" wide by .750" thickness. The concave profile consists of a 2-1/16" radius cove in the center, joined to a 15/32" tall vertical fillet on top. The lower section is comprised of a 1/16" angled fillet, attached to a 7/16" radius semicircle tangent off a 17/64" horizontal fillet at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific bevels set the installed height and projection at an identical dimension of 2-1/2" tall and wide.
Two high points in the design were intentionally positioned on the same plane, our standard design features will assure superior hold down conditions while milling the pattern on any industrial moulder, provided the pressure shoe is parallel to the bed plates. Take advantage of our specialized design skills, over thirty years of experience in wood moulding manufacturing, superior designed acrylic templates, and exceptional quality cutters.
For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. Read a brief detailed explanation on how to use the calculator here.
Width = 3.531" Depth of Cut: = .491" top set of knives
Thickness = .750" Depth of Cut: = .437" right set blades & .437" left set of knives.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
