Crown 3-17/32" - 3

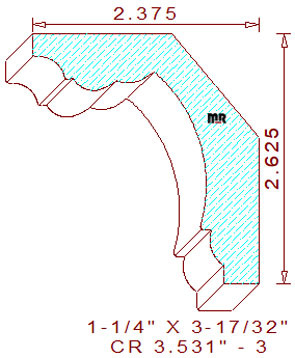

This uniquely stylish 3-17/32" - 3 crown mould measures 3.531" wide by 1.250" thickness, allowing the detail to be machined sprung (laying horizontally flat) out of six-quarter lumber. The concave custom profile is composed of a 1-9/16" radius cove in the center, attached to two decorative arched semicircles and a 17/64" cove flanked by small line segment at the top left, the lower portion consists of a 5/16" radius ovolo with a 3/8" wide horizontal line segment on the bottom of the design. The spring angles are fixed at forty and fifty degrees, which are included in the downloadable dxf file available below, these specific back bevels set the installed height at 2-5/8" tall with a projection of 2-3/8" wide.
