Crown 3-9/16"
Crown 3-9/16"

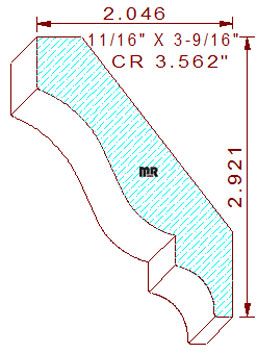

This standard 3-9/16" crown mould measures 3.562" wide by .687" thickness. The classic crown design comprises two vertical fillets separated by a shallow cyma recta in the middle. The bottom of the design retains a cove and horizontal fillet. The spring angles are fixed at thirty-eight and fifty-two degrees, setting the installed height at 2-59/64" tall with a 2-3/64" wide projection. Three high points in the design are purposely positioned on the same level plane to assist in holding down the profile while milling the pattern on an industrial moulder.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.363
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.550
Top Cutter Head
Width: 3.563
Depth of Cut: 0.405
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$267.28
Not Needed
Total:
$600.28
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$284.53
Not Needed
Total:
$636.53
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$310.41
Not Needed
Total:
$690.91
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
