Crown 3-9/16" - 4
Crown 3-9/16" - 4

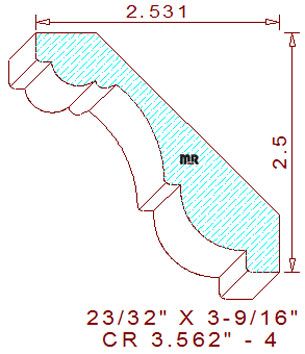

This alluring 3-9/16" - 4 crown mould measures 3.562" wide by .718" thickness. The profile consists of a combination of fillets, both horizontal and vertical, ovolos/ beads or arc and a cove. The installed height is 2-1/2" tall and a projection of 2-17/32" wide with the spring angles fixed at forty-five degree.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.448
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.422
Top Cutter Head
Width: 3.563
Depth of Cut: 0.421
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$267.28
Not Needed
Total:
$557.28
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$284.53
Not Needed
Total:
$593.53
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$310.41
Not Needed
Total:
$647.91
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
