Crown 3-19/32"
Crown 3-19/32"

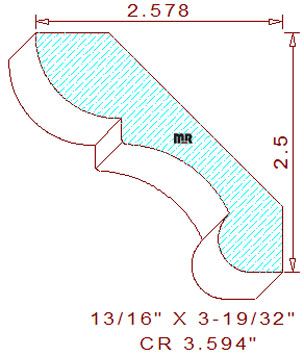

This 3-19/32" crown mould measures 3.593" wide by .812" thickness; the profile comprises a quarter-round bead at the top with a vertical fillet attached to a cavetto with a three-quarter round bead at the bottom of the pattern. When installed, the height is 2-1/2", the projection is 2-37/64", and the fixed spring angles are at 45 degrees. Two points of the design are positioned on the same plane for optimal hold-down during milling. This design could also be used as a bed mould, as the top of the profile would flow into the next element, such as in a stacked cornice buildup.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.539
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.495
Top Cutter Head
Width: 3.594
Depth of Cut: 0.454
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$172.25
$128.25
(Template not needed)
$278.58
Not Needed
Total:
$579.08
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$181.75
$137.75
(Template not needed)
$295.95
Not Needed
Total:
$615.45
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$196.00
$152.00
(Template not needed)
$322.02
Not Needed
Total:
$670.02
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
