Crown 3-19/32" - 5

Crown 3-19/32" - 5

Crown 3-19/32" - 5

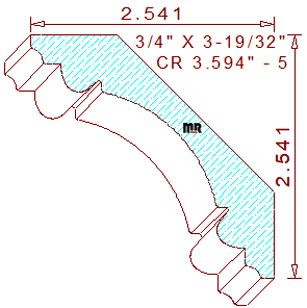

This exceptional 3-19/32" - 5 crown mould measures 3.594" wide by .750" thickness, enabling the detail to be milled sprung (laying horizontally flat) from four quarter lumber. The symmetrical terminating profile is composed of a 1-17/32" cove in the center, flanked by a 1/8" deep by 1/32" wide sunk fillet, joined to a teardrop-shaped bead attached to a 3/16" broad line segment and a 5/32" cove with a 9/64" line on both the top and bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 2-35/64" tall with a projection of 2-35/64" wide. We offer a few other alternative sizes of this style design for your review and consideration, crown 3.437" - 7, crown 3.469", crown 4.750" - 7, crown 5.000" - 11 and crown 6.500" - 1.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.638
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.638
Top Cutter Head
Width: 3.594
Depth of Cut: 0.467
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$260.20
Not Needed
Total:
$559.70
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$277.58
Not Needed
Total:
$596.08
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$294.95
Not Needed
Total:
$632.45
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
