Crown 3-5/8" - 11

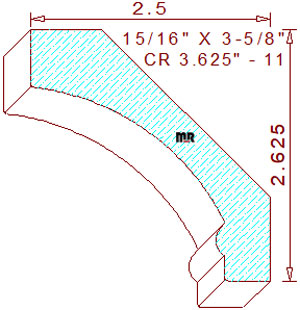

This 3-5/8" - 11 terminating crown mould measures 3.625" wide by .938" thickness, permitting the pattern to be milled sprung (laying horizontally flat) out of five-quarter lumber. The lovely concave profile is comprised of a 39/64" tall vertical line on the top left, connected to a 2-9/16" concave semicircular arc in the center, merged with an 11/32" tall convex half round bead and a 17/64" tall by 31/64" flat line on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 2-5/8" tall with a projection of 2-1/2" across the top.
