Crown 3-5/8" - 4

Crown 3-5/8" - 4

Crown 3-5/8" - 4

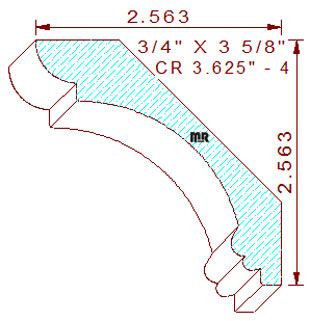

This beautiful 3-5/8" - 4 crown mould measures 3.625" wide by .750" thickness. The profile is composed of a quarter-round arc with an attached vertical fillet on top, a large cavetto is positioned in the center, and two cascading beads with a connected squared fillet are located on the bottom. When properly milled, cut, and installed, the height and projection are identical at 2-9/16" tall and wide, with the spring angles fixed at forty-five degrees. The high points in the design are intentionally positioned on the same level plane, creating superior hold-down capabilities while milling the pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.615
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.615
Top Cutter Head
Width: 3.625
Depth of Cut: 0.500
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$261.75
Not Needed
Total:
$542.25
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$279.25
Not Needed
Total:
$578.75
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$296.75
Not Needed
Total:
$615.25
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
