Crown 3-5/8" - 5
Crown 3-5/8" - 5

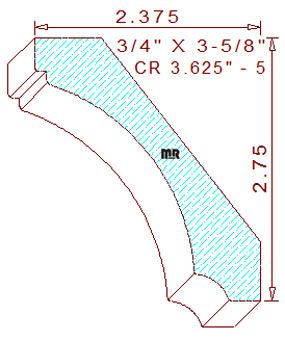

This concave 3-5/8" - 5 crown mould measures 3.625" wide by .750" thickness. The profile is comprised of a cavetto/cove in the center attached to a 1/8" wide by 23/64" tall, notched fillet on top with a slight concave cove and an 11/32" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, setting the installed height at 2-3/4" tall with a projection of 2-3/8" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.555
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.382
Top Cutter Head
Width: 3.625
Depth of Cut: 0.461
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
