Crown 3-5/8" - 9

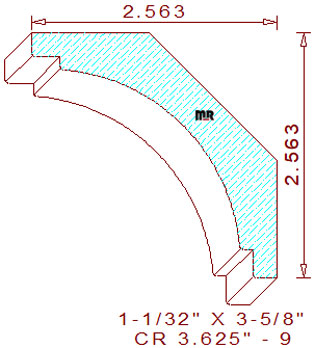

This mid-sized 3-5/8" - 9 concave crown mould measures 3.625" wide by 1.031" thickness, requiring a 3-7/8" wide blank of five-quarter lumber for milling sprung (laying horizontally flat) on an industrial moulder. The symmetrical terminating profile comprises a 2-1/32" radius cavetto in the middle. The center attaches to a 9/64" line segment joined to a 19/64" by 1/4" perpendicular lines in the design's upper left and lower right corners. The spring angles are at forty-five degrees; the dedicated back bevels keep the face sides of the pattern parallel to the wall and ceiling. These specific angle positions lock in the installed height at 2-9/16" tall with a 2-9/16" projection across the top.
