Crown 3-11/16" - 1

Crown 3-11/16" - 1

Crown 3-11/16" - 1

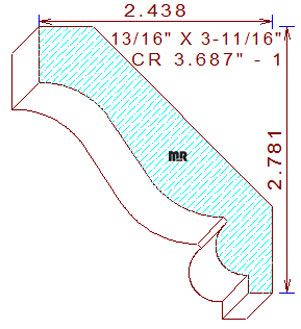

This creative 3-11/16" - 1 crown mould measures 3.687" wide by .812" thickness. The profile is composed of a 19/32" tall fillet in the upper portion, a cyma recta in the middle, and a torus at the bottom of the design when installed, the height becomes 1-25/32" tall, with a projection of 2-7/16" wide, the spring angles are set at forty-five degrees.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.418
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.653
Top Cutter Head
Width: 3.688
Depth of Cut: 0.458
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$128.25
(Template not needed)
$264.90
Not Needed
Total:
$554.90
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$137.75
(Template not needed)
$282.65
Not Needed
Total:
$591.65
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$147.25
(Template not needed)
$300.40
Not Needed
Total:
$628.40
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
