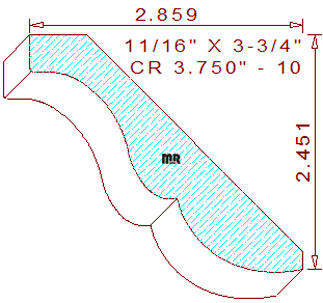

This Inventive Crown Moulding 3-3/4" – 10 measures 3.750" wide by .687" thickness with a depth of cut of .132" on the right vertical back bevel cutters, .416" on the left back bevel blades, and a .625" on the top horizontal set of moulding knives.
The free-flowing profile is comprised of a 25/64" tall vertical fillet on top, connected to a graceful cyma recta in the center that transitions into a two tangent radius arc at the bottom of the pattern. The spring angles are fixed at forty-five degrees, search our bevels category by this degree to find a back bevel cutter appropriate for this crown/bed moulding design, these specific back bevels set the installed height at 2-29/64" tall with a projection of 2-55/64" wide. Two high points in the center of the detail were intentionally positioned on the same level plane, this standard design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is properly set parallel to the moulder bed plates.
Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding profile designs. Weather you own a recently built house or older style residence, we have the ability, knowledge and experience to create moulding designs that will complement the architectural décor of your beautifully elegant home.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
