Crown Moulding 3-3/4" - 11

Crown Moulding 3-3/4" - 11

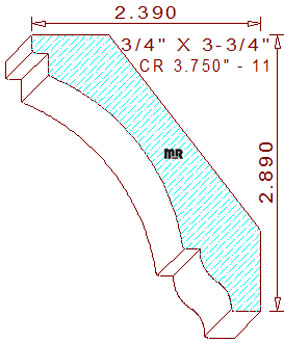

This Beautiful Crown Moulding 3-3/4" - 11 measures 3.750" wide by .750" thickness with a depth of cut of .491" on the right vertical blades, .664" on the left vertical cutters, and a .301" depth of cut on the top horizontal set of moulding knives.

The appealing profile is comprised of a 2-9/32" radius cavetto in the center, attached to a 1/4" tall by 5/32" wide notched fillet leaving a 3/16" tall vertical fillet at the top, joined to an ogee/cyma reversa with a 3/16" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degree, search our bevels category by these degree to find two sets of back bevel cutters appropriate for this stylish crown moulding design, these specific back bevels set the installed height at 2-57/64" tall with a projection of 2-25/64" wide. Three high points in the detail were intentionally positioned on the same level plane, this creative design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is properly set parallel to the moulder bed plates.

We provide the cut steel size on all our moulding knife designs, this specialized feature allows you to be able to obtain the correct width size of knife steel before you start knife grinding procedures and moulding production.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
