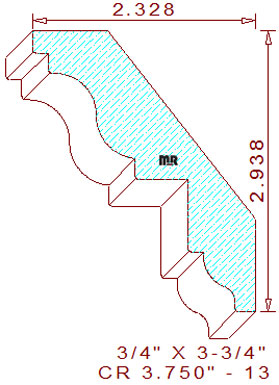

This Elegant Crown Moulding 3-3/4" - 13 measures 3.750" wide by .750" thickness with a depth of cut of .487" on the right vertical blades, .767" on the left vertical cutters, and a .449" depth of cut on the top horizontal set of moulding knives.
The classy profile is comprised of a cyma reversa attached to a notched and vertical fillet in the upper portion of the pattern, the lower section consists of a 9/16" wide by 3/4" tall rabbet for inserting rope, dentil, or other type of decorative moulding, joined to a ogee/cyma reversa with a 13/64" wide horizontal fillet at the bottom of the profile. The spring angles are fixed at thirty-eight and fifty-two degree, search our bevels category by these degree to find two sets of back bevel cutters appropriate for this stylish crown moulding design, these specific back bevels set the installed height at 2-15/16" tall with a projection of 2-21/64" wide. Four high points in the detail were intentionally positioned on the same level plane, this creative design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is set parallel to the moulder bed plates.
Looking for that special custom moulding design to enhance the architectural style of your current project, send us a sketch, custom knife design is our specialty. Experience the beauty we can create together from your sketched ideas and our vast knowledge of moulder tooling and machinery.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
