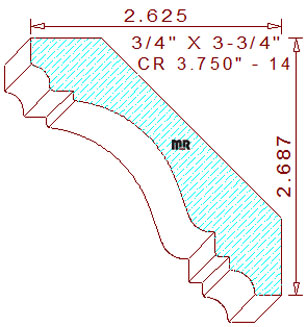

This Attractive Crown Moulding 3-3/4" - 14 measures 3.750" wide by .750" thickness with a depth of cut of .517" on the right vertical blades, .568" on the left vertical cutters, and a .373" depth of cut on the top horizontal set of moulding knives.
The good-looking profile is comprised of a cove shaped cyma recta in the middle, attached to a notched fillet and 13/64" radius cove on top, with a stepped fillet and a 15/64" radius cavetto flanked by a vertical and horizontal fillet on the bottom of the pattern. The spring angles are fixed at forty-five degrees, search our bevels category by this degree to find a back bevel cutter appropriate for this graceful crown moulding design, these specific back bevels set the installed height at 2-11/16" tall with a projection of 2-5/8" wide. Four high points in the detail were intentionally positioned on the same level plane, this creative design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is properly set parallel to the moulder bed plates.
Need this profile template and a set of custom moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling moulding designs to help match your creative style.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
