Crown 3-3/4" - 26
Crown 3-3/4" - 26

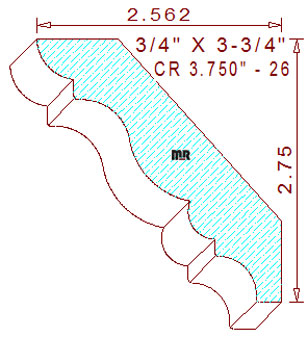

This good-looking 3-3/4" - 26 crown mould measures 3.750" wide by .750" thickness. The attractive profile is comprised of two tangent radiuses which create a cyma recta in the center of the detail, connected to a 7/32" tall vertical fillet and a 7/16" radius quarter circle at the top, the lower portion of the design consists of a 9/32" radius half circle attached to a 3/16" tall vertical fillet, joined to a 13/32" radius cove with a 17/64" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at forty-two and forty-eight degrees; search our bevels category by these degrees to find two back bevel cutters appropriate for this eye-catching crown pattern, these specific back bevels set the installed height at 2-3/4" tall with a projection of 2-9/16" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.631
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.567
Top Cutter Head
Width: 3.750
Depth of Cut: 0.276
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$277.00
Not Needed
Total:
$619.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$295.00
Not Needed
Total:
$656.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$322.00
Not Needed
Total:
$712.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
