Crown 3-3/4" - 27
Crown 3-3/4" - 27

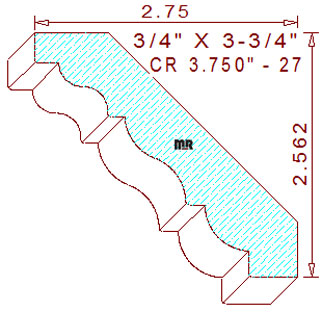

This ornate 3-3/4" - 27 crown mould measures 3.750" wide by .750" thickness. The appealing profile is comprised of two 1/2" radius tangent arcs creating a cyma reversa in the center, attached to a smaller cyma reversa flanked by small horizontal fillets, with a 5/16" tall vertical fillet at the top, the lower portion of the design consists of an ovolo with an attached 33/64" wide horizontal fillet at the bottom of the pattern. The spring angles are set at forty-five degrees; search our bevels category by this degree to find a set of back bevel cutters appropriate for this attractive crown pattern, these specific back bevels set the installed height at 2-9/16" tall with a projection of 2-3/4" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.544
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.405
Top Cutter Head
Width: 3.750
Depth of Cut: 0.438
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$277.00
Not Needed
Total:
$567.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$295.00
Not Needed
Total:
$604.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$322.00
Not Needed
Total:
$659.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
