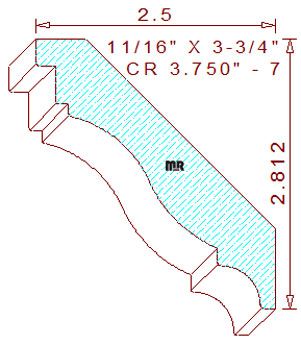

This Traditional Crown Moulding 3-3/4" - 7 measures 3.750" wide by .687" thickness, the profile is comprised of a two tangent radius cyma recta in the middle connected to two notched fillets at top and a cavetto flanked by a vertical and horizontal fillet positioned at the bottom of the pattern. The spring angles are fixed at forty-five degree which sets the installed height at 2-13/16" tall with a projection of 2-1/2" wide. Four high points of the design are purposely positioned on the same level plane to create superior hold down conditions while milling this profile on an industrial style moulder.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
