Crown 3-13/16" - 7

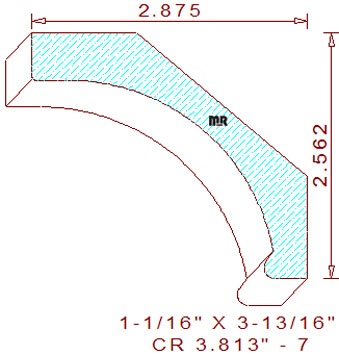

This concave 3-13/16" - 7 crown mould measures 3.849" wide by 1.062" thickness. The profile is comprised of a 2-3/16" radius cavetto flanked by a 1/2" vertical fillet on top, with a 1/8" radius half circle attached to a horizontal fillet at the bottom of the pattern. The spring angles are fixed at forty and fifty degrees; these specific bevels set the installed height at 2-9/16" tall, with a 2-7/8" wide projection. Two high points in the design are positioned on the same level plane, this will assure excellent hold down conditions while milling the pattern, provided the moulder pressure shoe is parallel to the machine's bed plates. This Cad-generated Dxf file contains three skillfully drafted template designs for creating custom knives for this lovely crown pattern.
