Crown 3-7/8" - 11

Crown 3-7/8" - 11

Crown 3-7/8" - 11

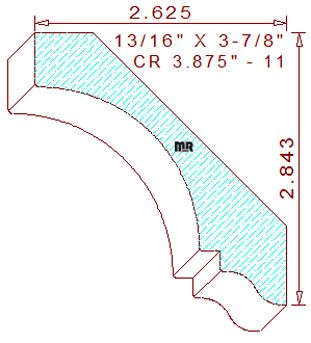

This attractive 3-7/8" - 11 crown mould measures 3.875" wide by .812" thickness, you will be able to mill this detail out of four-quarter lumber, and the profile is composed of a cavetto or cove in the center that is flanked by a vertical fillet on top and a more petite notched fillet below, a cyma rectum or ogee is positioned at the bottom of the design. When properly installed, the height becomes 2-27/32" tall with a projection of 2-5/8" wide with the spring angles fixed at forty-five degrees. The points of the design are intentionally positioned on the same level plane to aid in holding down the profile while milling the pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.432
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.578
Top Cutter Head
Width: 3.875
Depth of Cut: 0.500
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$274.25
Not Needed
Total:
$554.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$292.75
Not Needed
Total:
$592.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$311.25
Not Needed
Total:
$629.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
