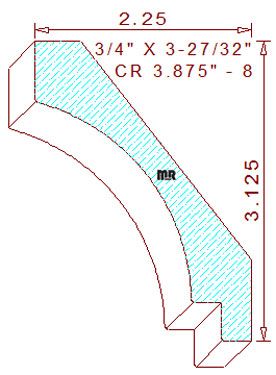

This Crown/Cove Moulding 3-7/8" - 8 measures 3.848" wide by .750" thickness, the profile is comprised of a .625" tall vertical fillet at the top with a 2.170" concave radius in the center and a .375" wide by .399" tall stepped fillet with a .312" wide horizontal flat portion at the bottom of the detail. When installed the height becomes 3-1/8" tall with a projection of 2-1/4" wide, the spring angles are set at thirty-eight and fifty-two degrees with three points of the detail positioned on the same plane for exceptional hold conditions during the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
