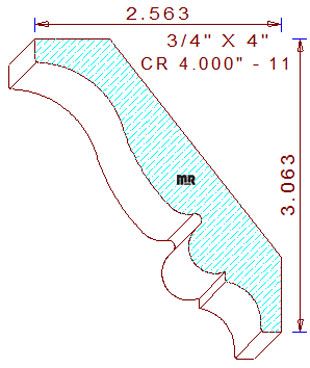

This Crown Moulding 4" - 11 measures 4.000" wide by .750" thickness, the profile consist of the following shapes, four fillets, three vertical, one horizontal, french curve, half round bead and a cavetto on the bottom, The high points of the design are located on the same level plane for excellent hold down capabilities when milling, the installed height equals 3-1/16" tall with a projection of 2-9/16" wide with the spring angles fixed at thirty-eight and fifty-two degrees.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
