Crown 4" - 13
Crown 4" - 13

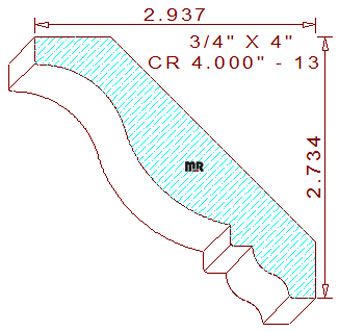

This 4" - 13 crown mould measures 4.000" wide by .750" thickness; the elegant design is comprised of a cyma recta flanked by vertical fillets in the upper portion of the profile attached to a small cyma reversa flanked by horizontal fillets in the lower section of the pattern. The spring angles are fixed at forty-five degrees, which sets the installed height at 2-47/64" tall with a projection of 2-15/16" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.561
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.415
Top Cutter Head
Width: 4.000
Depth of Cut: 0.397
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$172.25
$128.25
(Template not needed)
$300.50
Not Needed
Total:
$601.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$181.75
$137.75
(Template not needed)
$319.50
Not Needed
Total:
$639.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$196.00
$152.00
(Template not needed)
$348.00
Not Needed
Total:
$696.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
